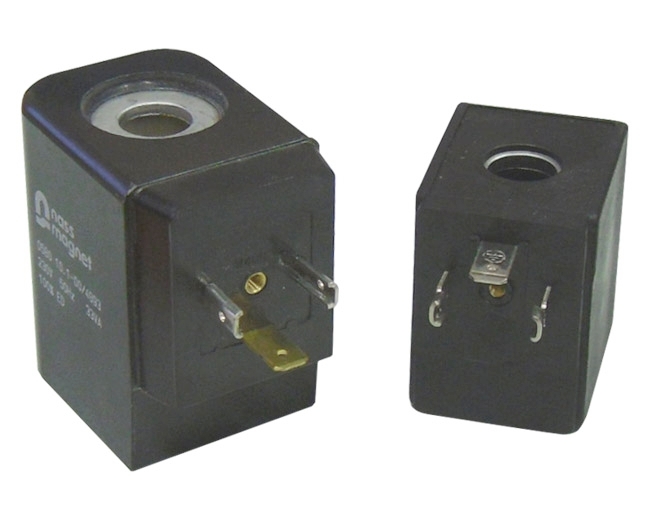

Coils
| Coil power: | 3,8 - 33 [VA]; 2,4 - 25 [W] |
| Duty factor: | 100 [%] |
| Insulation class: | F (155 °C) |
| Enclosure: | IP 65 |
| Voltage tolerance: | +/-10 [%] |
| Voltages: | 12, 24, 42, 48, 110, 220, 230 [V] AC / 50 [Hz] 12, 24, 48, 110, 220, 230 [V] DC |
| Ambient temperature: | -20 to 50 [°C] |
