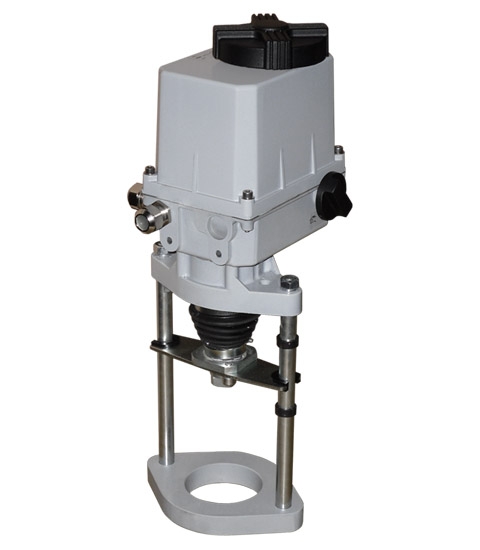

DMS3
Installation instructions
Installation instructions - Control unit
|
Standard equipment and functions
- Supply voltage 230 V AC
- Terminal board connection
- Switching off in limit positions from the position or thrust
- Torque (thrust) blocking in limit positions
- Torque (thrust) blocking during the start
- 2 freely programmable relays RE1, RE2
- Relay READY
- Control by unified signal 0/4 - 20 mA, 4 - 12 mA, 12 - 20 mA,
or 0/2 - 10 V (not for DMS3 in 2P version)
- Control voltage for remote control 24 V DC
- Impulse control (inching duty)
- Timing mode / regime of operation
- Safety function ESD (failure reaction)
- Electronic position transmitter 4 - 20 mA passive (not for DMS3 in 2P version)
- Output for failure messages
- Space heater operated by control unit
- Communication interface RS 232
- Program for parameters setting through PC
- Mechanical connection - pillar
- Manual control
Additional equipment
- Supply voltage 220 V AC, 24 V AC
- Mechanical connection - flange
|
