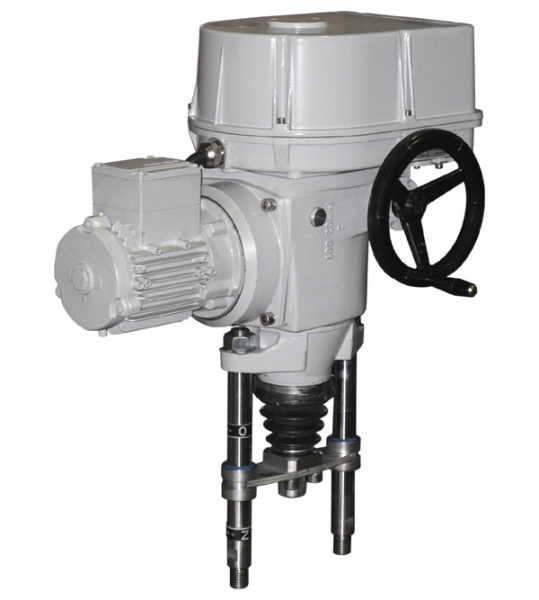

Lineáris elektromos hajtómű MT 3

Lineáris elektromos hajtómű MT 3
Type number: 52 400
Switching-off thrust: 4800 to 36000 [N]
Operating speed: 32 to 250 [mm/min]
Operating stroke: 10 to 100 [mm]
Ambient temperature: -20(-60) až +60 [°C]
Protection enclosure: IP 55, IP 67
Operating position: the motor axis
should be in horizontal
position +/-15°
Weight: 30 to 32 [kg]

Documents

General conditions

Technical data sheet

Installation instructions

Standard equipment

  • Supply voltage 3x400 V AC
  • Terminal board connection
  • Protection of the motor against overheating
  • 2 thrust switches
  • 2 position switches
  • 2 additional position switches
  • Space heater with thermal switch
  • Mechanical connection - pillar
  • Mechanical position indicator
  • Thrust switches blocking in limit positions
  • Manual control
  • Protection code IP 55

Additional equipment

  • Supply voltage 3x380 V AC
  • Connector connection
  • Reverse contactors
  • Tandem switches
  • Transmitter:
    - potentiometer: 1x100 Ω, 1x2000 Ω, 2x100 Ω, 2x2000 Ω
    - electronic position transmitter 0/4 - 20 mA, (passive/active)
    • - CPT (capacitive) 4 - 20 mA, (passive/active)
  • Mechanical connection - flange
  • Local control - after consulting with producer
