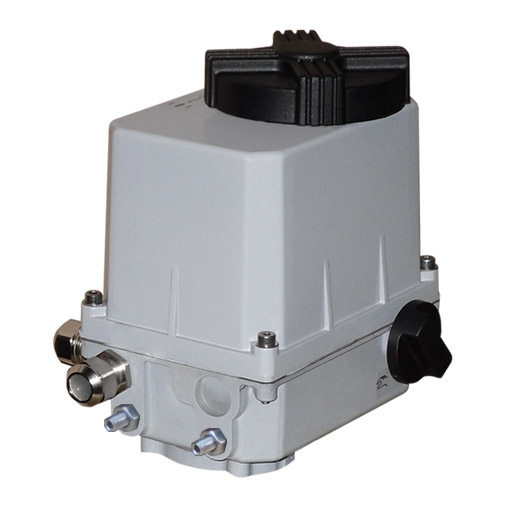

Egyfordulatú elektromos hajtómű SP 0-A

Egyfordulatú elektromos hajtómű SP 0-A
Type number: 280
Max. load torque: 40 [Nm]
Operating time: 15 to 160 [s/90°]
Operating angle: 90° to 270°
Ambient temperature: -25 to +55 [°C]
Protection enclosure: IP 67
Operating position: any position
Weight: 1,4 to 2,4 [kg]

Documents

General conditions

Technical data sheet

Installation instructions

Standard equipment

  • Supply voltage 230 V AC
  • Terminal board connection
  • 2 position switches
  • 2 additional position switches
  • Mechanical connection ISO 5211 - flange F03/F04
  • Manual control

Additional equipment

  • Supply voltage 220 V AC
  • Transmitter:
    - potentiometer: 1x100 Ω, 1x2000 Ω
    - electronic position transmitter 0/4 - 20 mA, (passive)
  • Space heater
  • Mechanical connection  ISO 5211 - flange F05/F07 with bracket
  • Mechanical stop ends
